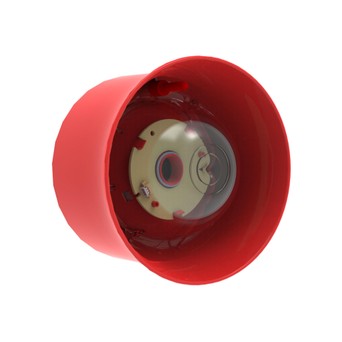

CHQ-WSB2/SIL

Wall Sounder Beacon, red case, (SIL2 approved)

Model CHQ-WSB2/SIL is an addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit features an integral beacon within the horn utilising high intensity LED technology and is designed to fit to the Standard Wall Sounder Base (YBO-R/3(RED)) & YBO-R/3(WHT)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof (IP65) by utilising the CHQ-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.

  • SIL Level 2 approved
  • Ideal for use in oil and gas environments
  • Single Loop Address - addressed via the TCH-B200 Hand Held Programmer
  • Variable Sound Output 90 ~ 102 dB(A) (±2 dB(A)) output at 1 metre
  • 0.5 or 1Hz flash frequency*1
  • High Intensity LED technology
  • Isolator base available
  • 51 User-Selectable Tones (all tones EN54-3 approved)
  • ‘O’ Rated Beacon to EN54-23
  • Available with Red or White LEDs
  • Weatherproof Kit available
